JAP DRAWINGS TO DOWNLOAD

Years ago, hundreds of JAP drawings on microfilm were found in a street in Wolverhampton, probably after Villiers took over JAP and then got taken over themselves. The microfilm was copied for the Vintage Motor Cycle Club library in the UK. Someone there made the list of motorcycle type drawings that is posted after the drawings below. About the same time, a digital copy of the microfilm was made, and Loose Fillings has a copy on two CDs from which these drawings are posted.

The following seem to be the most useful available drawings of early big twins – J/KTO/R etc; future postings may cover the speedway engines and the post-war ‘Mk1’ V-twin used in Coopers. Some of these drawings will also be applicable to the L series engines which were mainly 1096cc and used in Morgan threewheelers. These drawings are for pattern making and machining of castings; unfortunately no factory drawings of small parts are part of this set.

Click on the coloured link to download a pdf file of a drawing. Note that some drawings were modified and reused with a new part number. The first number is that of the file on the CDs. The second is the JAP drawing number. We would be grateful for additional information or corrections which may be sent direct to editor@loosefillings.com



Image (561) JAP7405

Image (561) JAP7405

Above: Timingside crankcase 1924

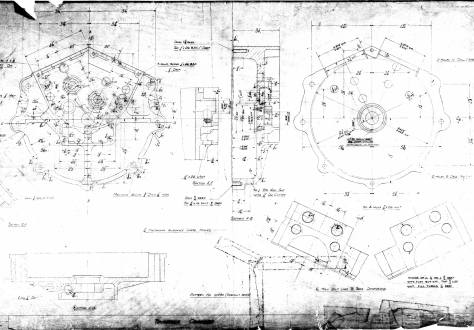

Image (479) JAP7405_10490

Image (479) JAP7405_10490

Above:  Timingside crankcase 1936 (probably JTOS 8/80)



Image (560) JAP7406

Image (560) JAP7406

Above: Driveside crankcase 1924

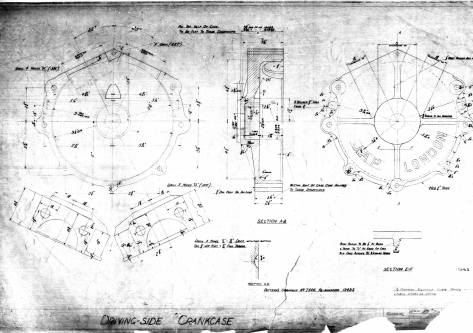

Image (308) JAP7406_13493

Image (308) JAP7406_13493

Above: Driveside crankcase 1936 (probably JTOS 8/80)



Image (559) JAP740X

 Image (559) JAP74XX

Above: Gear Cover



Image (563)7201

Image (563) JAP7201

Above: 8-30 HP  85mm Cylinder 1925

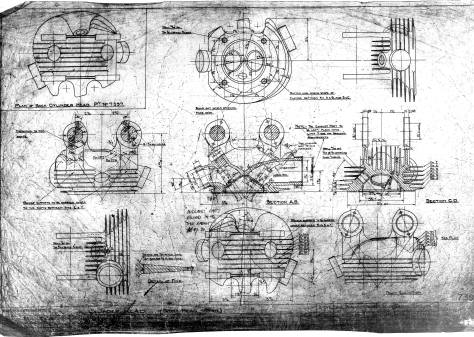

Image (562)7639

Image (562) JAP 7379

Above: Cylinder head front

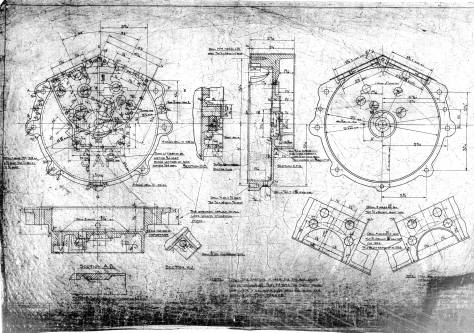

Image (561)7XXX

Image (561) JAP7405

Above: Gear side crankcase



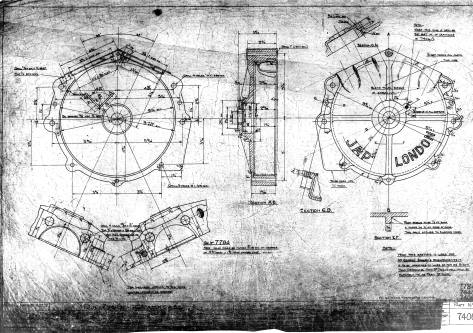

Image (560)7406

Image (560) JAP7406

Above:  Pulley side crankcase

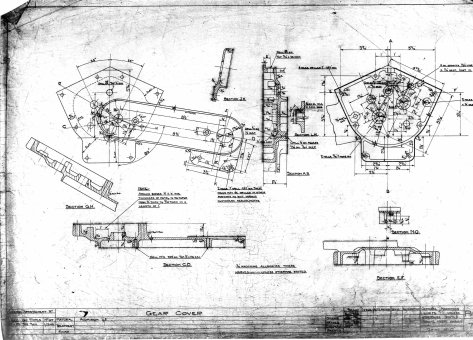

Image (559)74XX

Image (559) JAP7439?

Above:  Gear cover

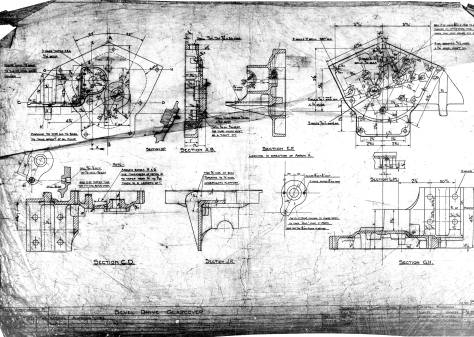

Image (556)

Image (556) JAP7510

Above: Bevel drive gear cover



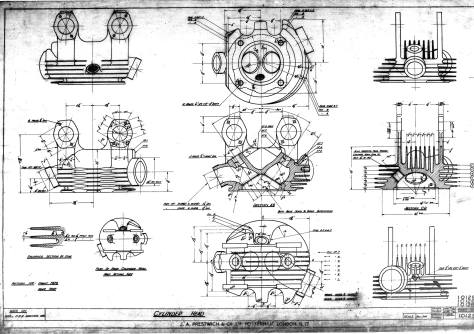

Image (492)10129

Image (492) JAP10129

Above: Cylinder head

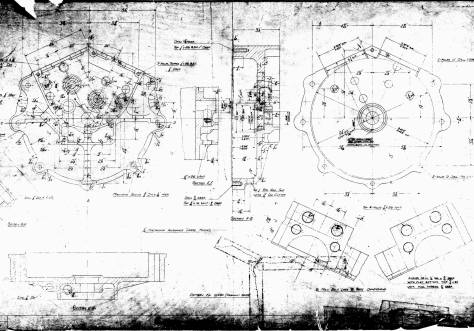

Image (479)10490Image (479) JAP10490

Above: Driveside crankcase 1936 (probably JTOS 8/80)



Image (435)11237

Image (435) JAP11237

Above: Dirt Track Cylinder Head 1932 (modified 1934 possibly for 8/80)

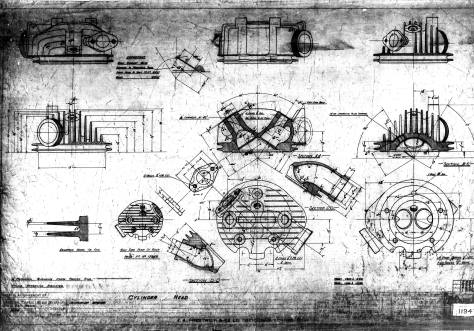

Image (400)11947

Image (400) JAP11947

Above  Cylinder Head (probably K/JTOR)

The following is a list of big-twin motorcycle type drawings held by the Vintage Motor Cycle Club library on microfilm. It would seem that some drawings on the CDs held by Loose Fillings are not be on the VMCC list (for example, those for speedway singles) and some on the VMCC list are not on the CDs.

Jap DwgList_Page_1Jap DwgList_Page_2Jap DwgList_Page_3Jap DwgList_Page_4Jap DwgList
